About Exaviz

Short: Exaviz designs carrier boards for Raspberry Pi Compute Modules that put PoE switching, video recording and storage on one small board.

Boilerplate: Exaviz designs carrier boards for Raspberry Pi Compute Modules, so one board can do the work of a PoE switch, a video recorder and an edge server. Its Cruiser board for Raspberry Pi CM5 has eight PoE+ ports and powers up to eight cameras straight from the board, with no separate PoE switch, plus a 2.5GbE uplink, NVMe and two SATA drives on a 170 x 120 mm board that fits Mini-ITX cases with standoff spacers. Its Interceptor board has five SATA ports and takes up to two PoE Boards for 16 PoE+ ports (10/100), for compact NAS and NVR builds. Exaviz boards run standard Raspberry Pi OS, Debian or Ubuntu with Exaviz packages from apt.exaviz.com and need no Exaviz account or Exaviz cloud. Exaviz is an Indiana company. Learn more at exaviz.com.

Logos

Please don't use the logo in a way that suggests we endorse a product or service. Keep the wordmark's proportions and give it clear space. Use green or white on dark backgrounds and black on light ones. Brand green is #90FF80 and brand gray is #5F6461.

Product photos

Click a photo to download the full-resolution file.

Cruiser carrier board

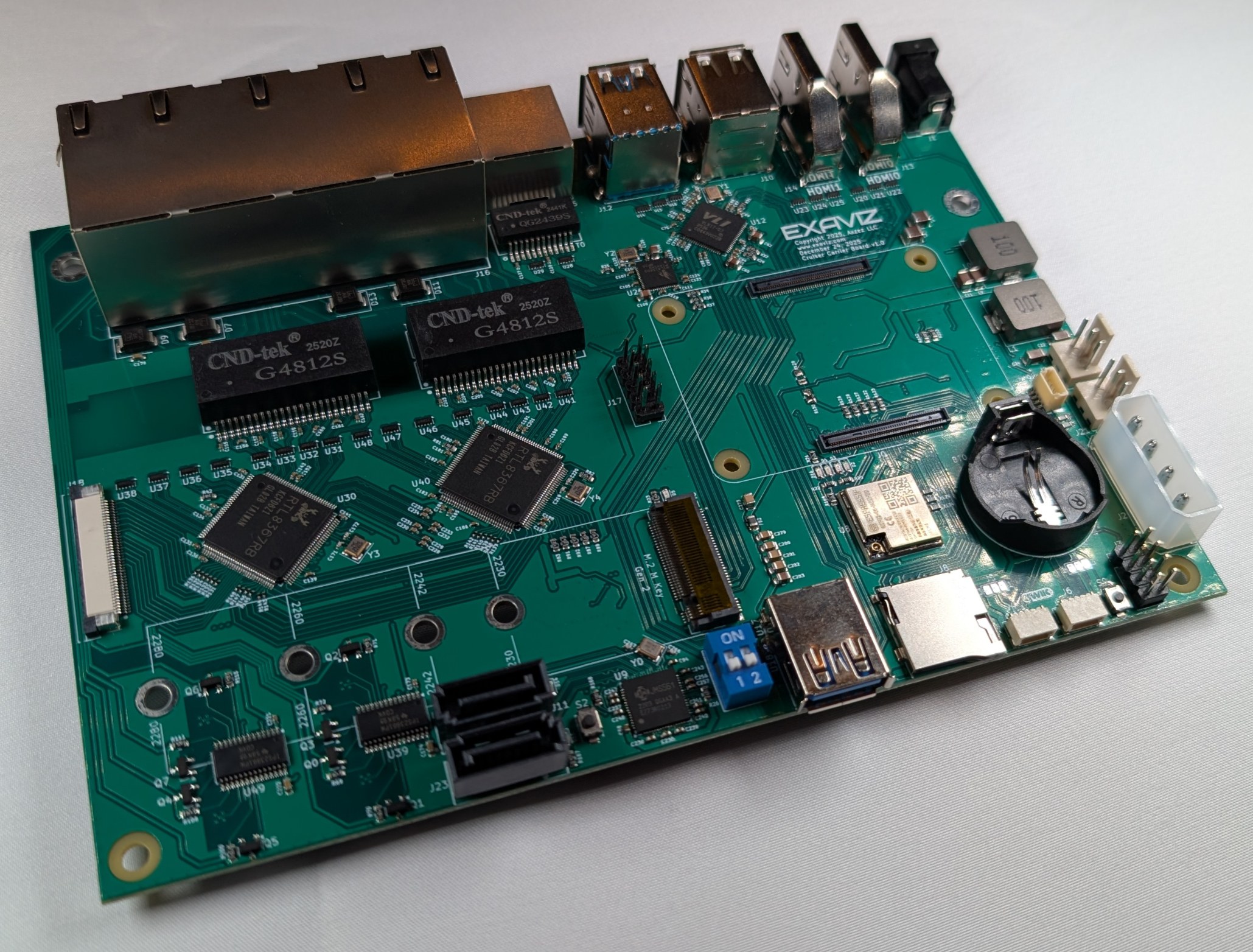

Angled view · Download (JPG, 2059 x 1564, 0.6 MB)

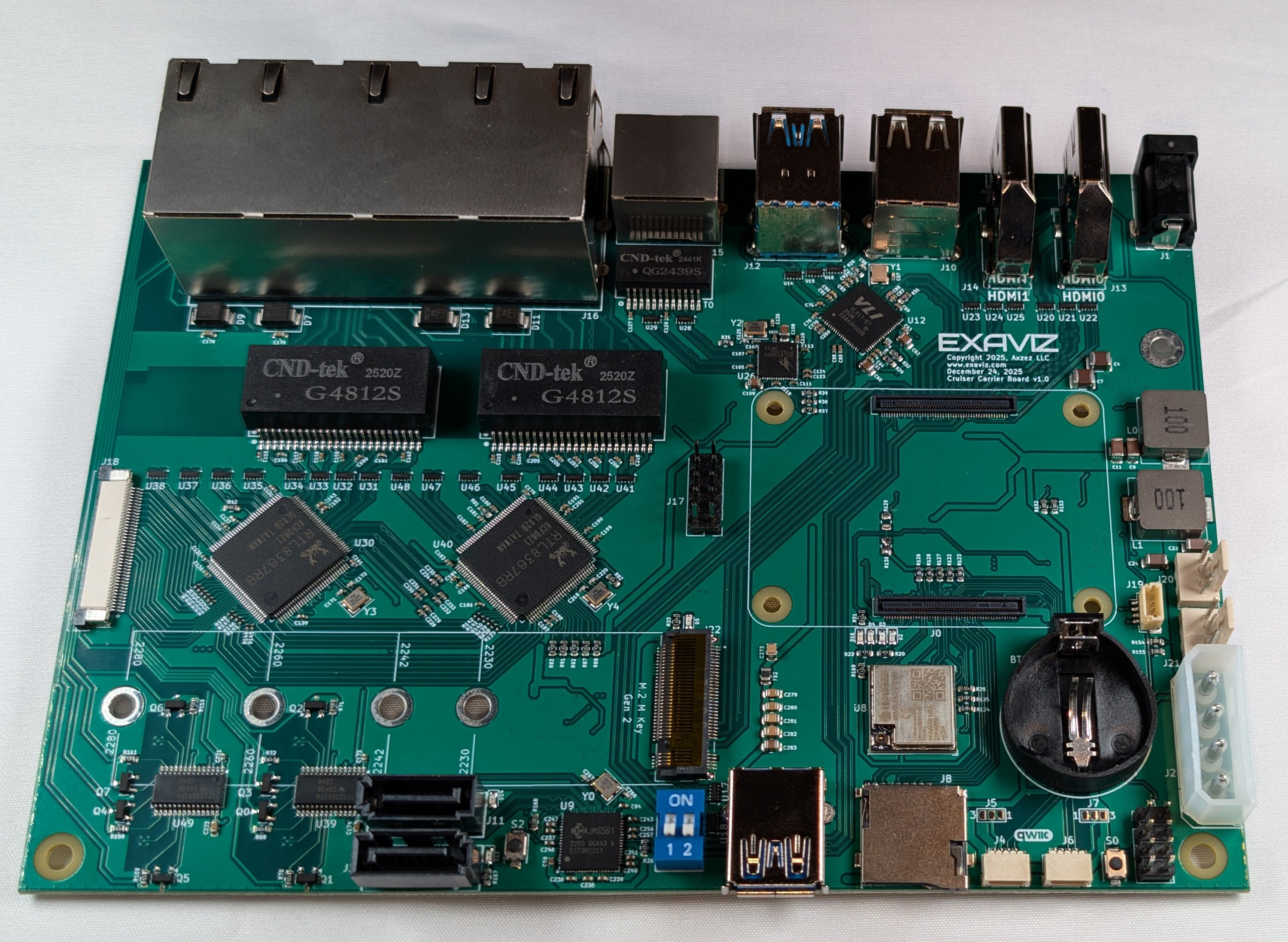

Top view · Download (JPG, 3000 x 2193, 1.3 MB)

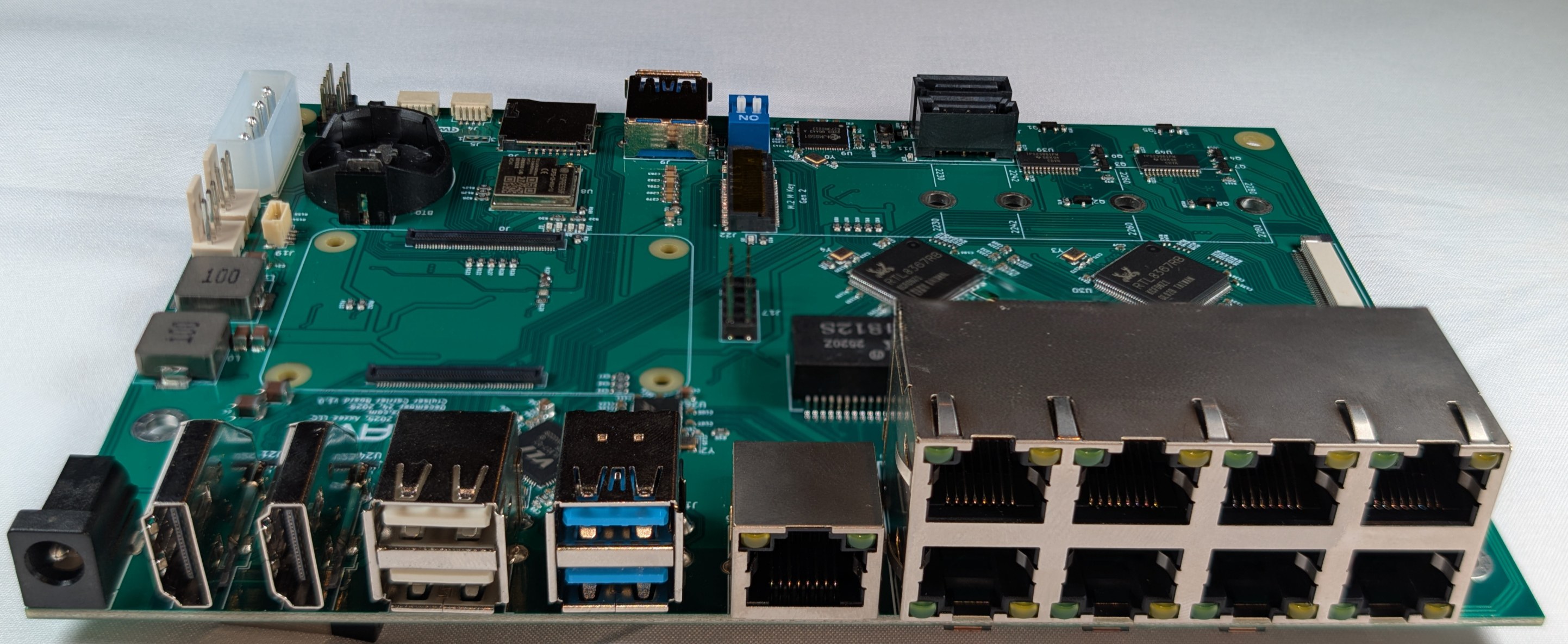

Rear ports · Download (JPG, 2885 x 1184, 0.6 MB)

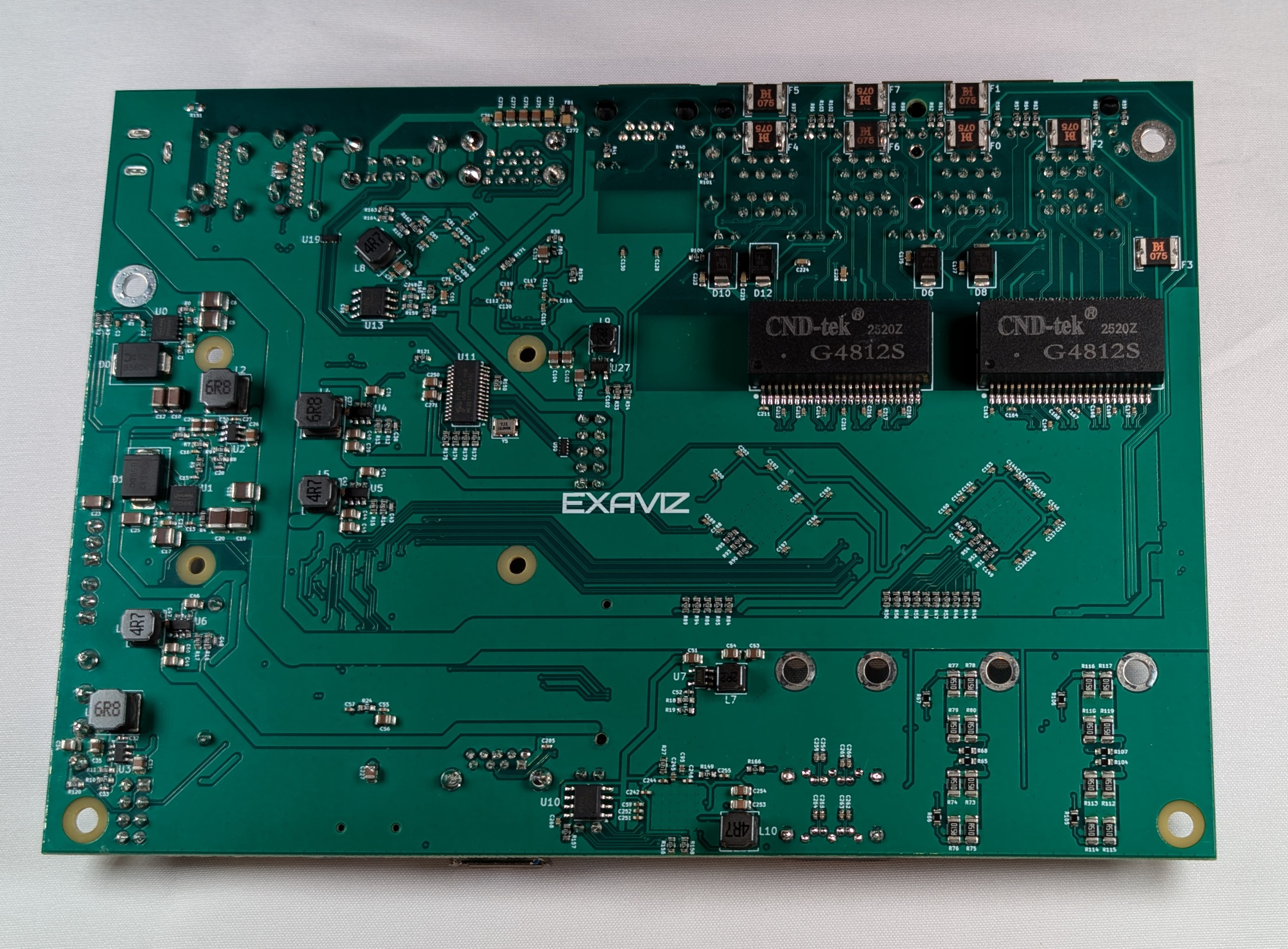

Bottom view · Download (JPG, 3000 x 2211, 1.2 MB)

Cruiser desktop case and power

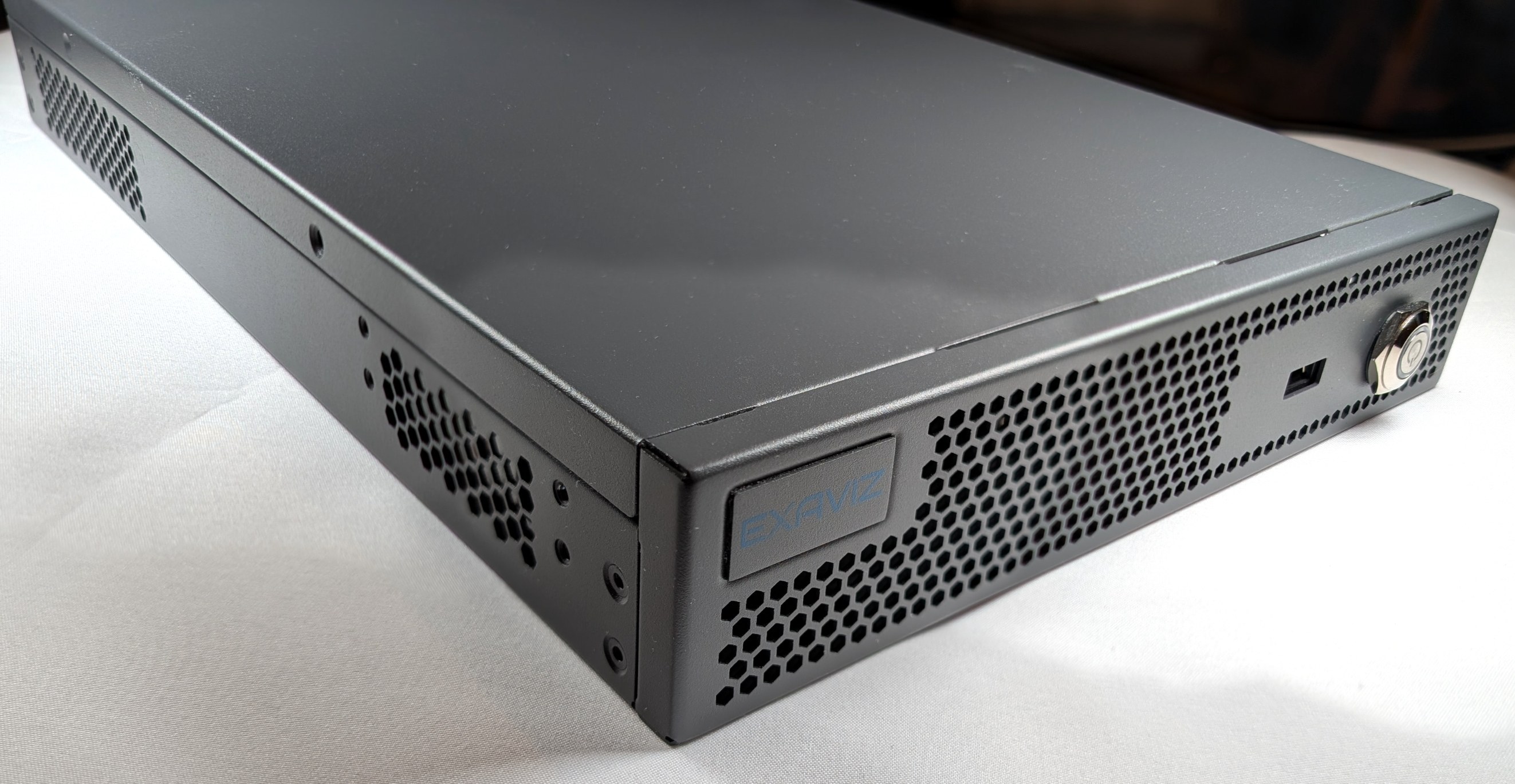

Angled view · Download (JPG, 2645 x 1369, 0.5 MB)

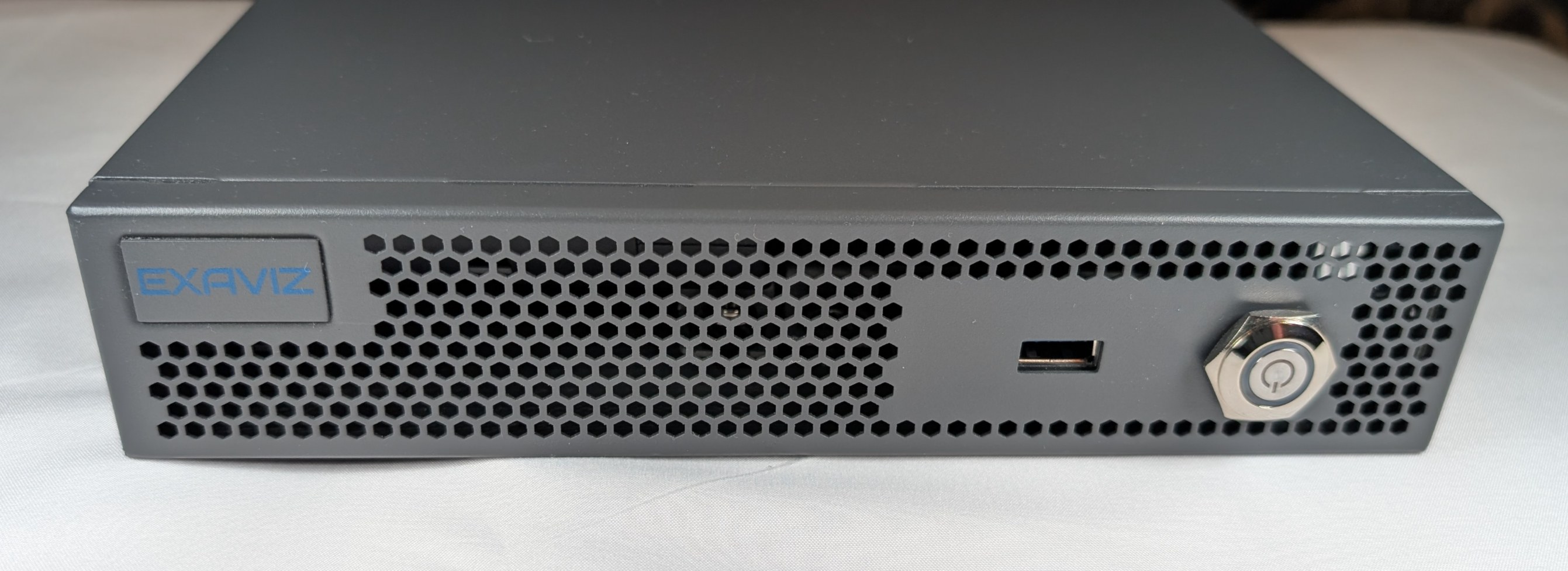

Front · Download (JPG, 2682 x 976, 0.3 MB)

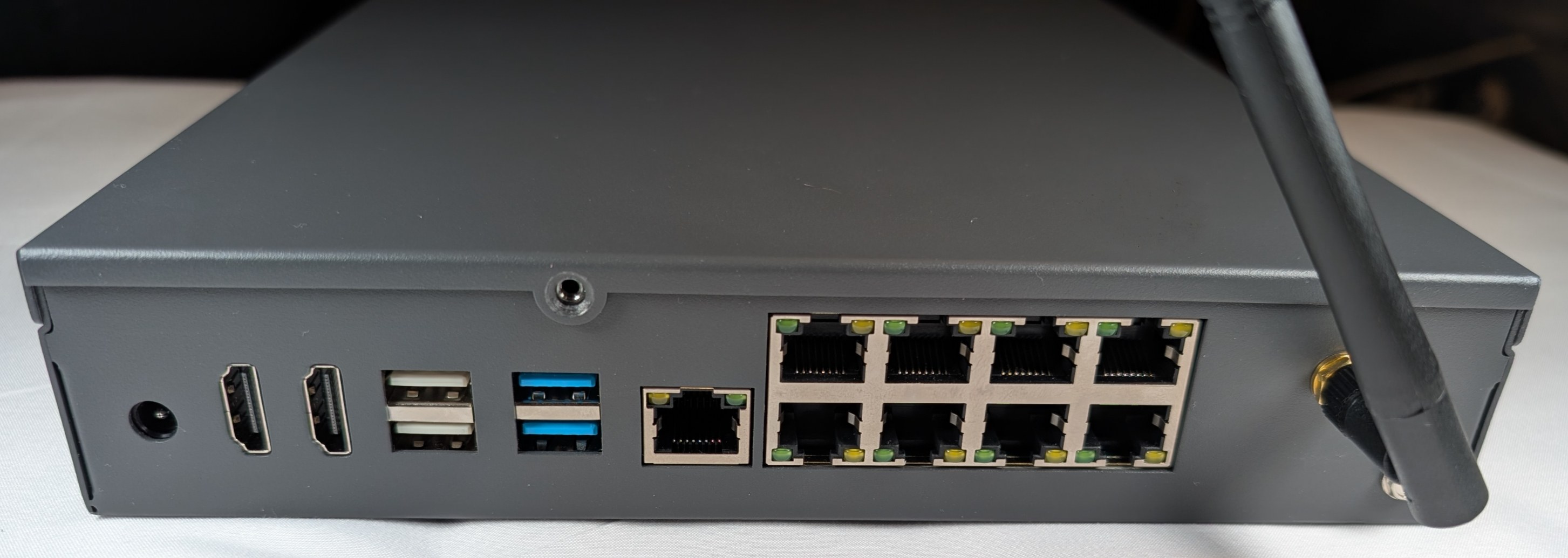

Rear ports · Download (JPG, 2906 x 1035, 0.3 MB)

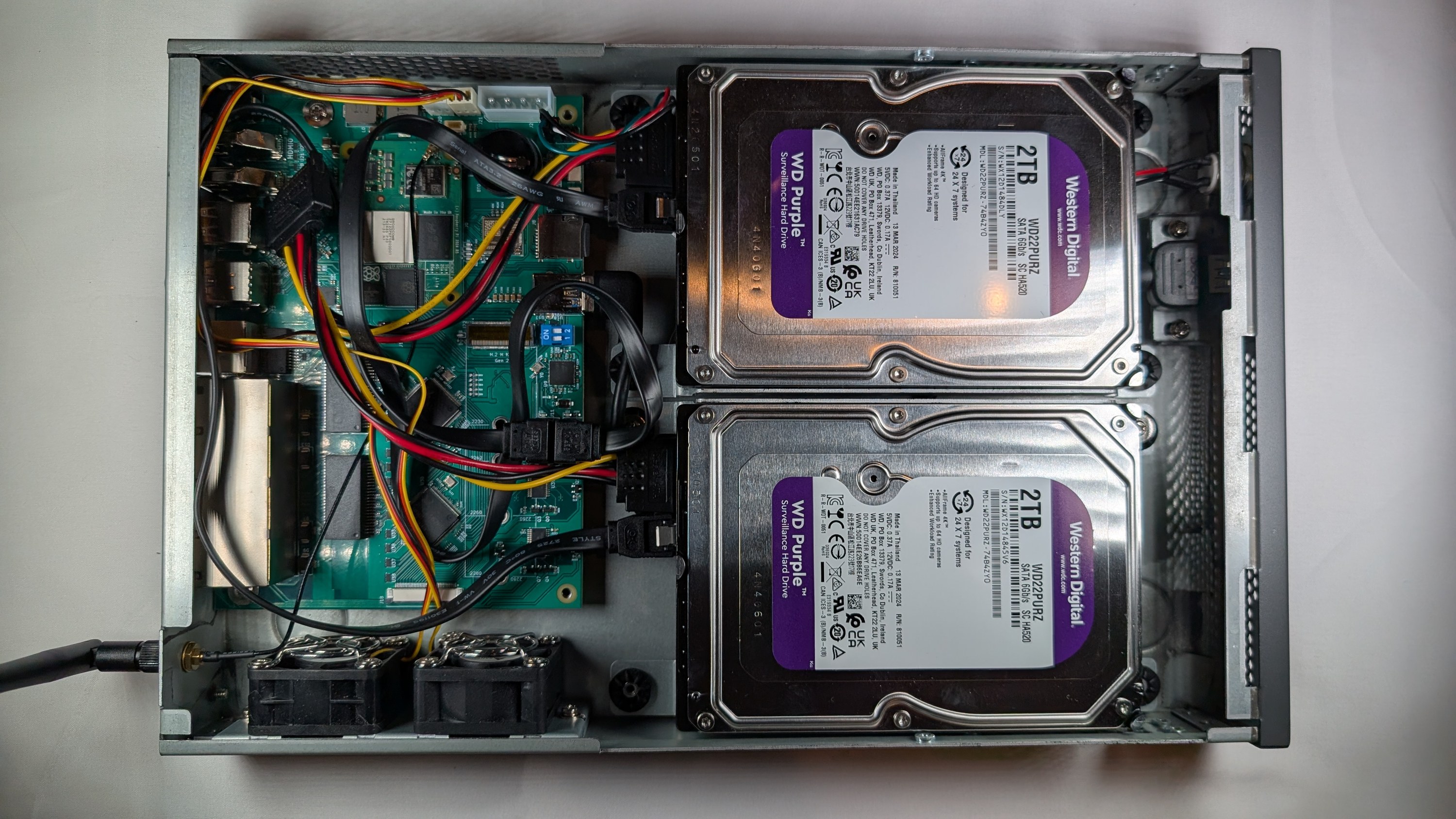

Inside, with two drives · Download (JPG, 3000 x 1688, 0.9 MB)

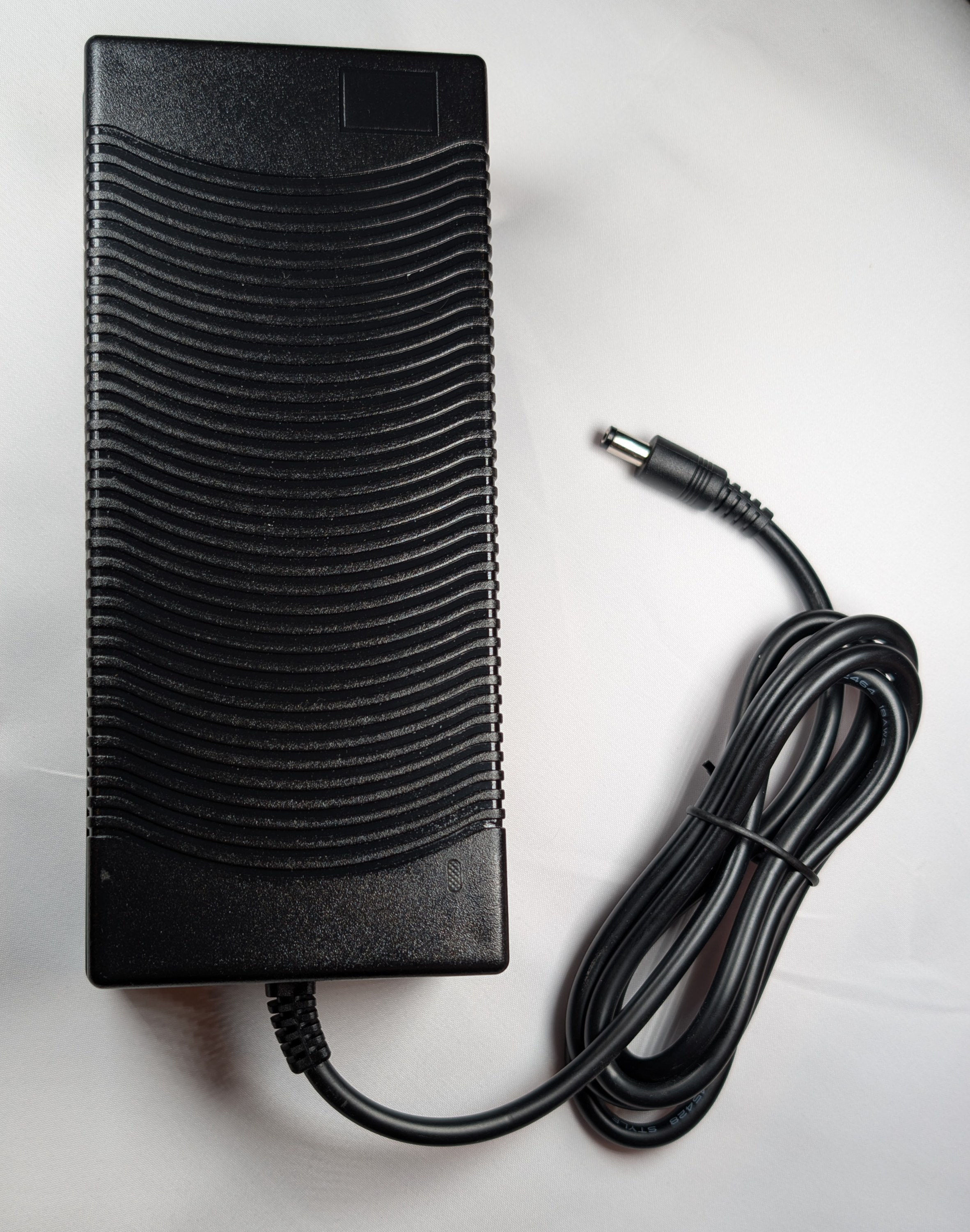

Cruiser 48V 4A power supply · Download (JPG, 2363 x 3000, 1.2 MB)

Interceptor

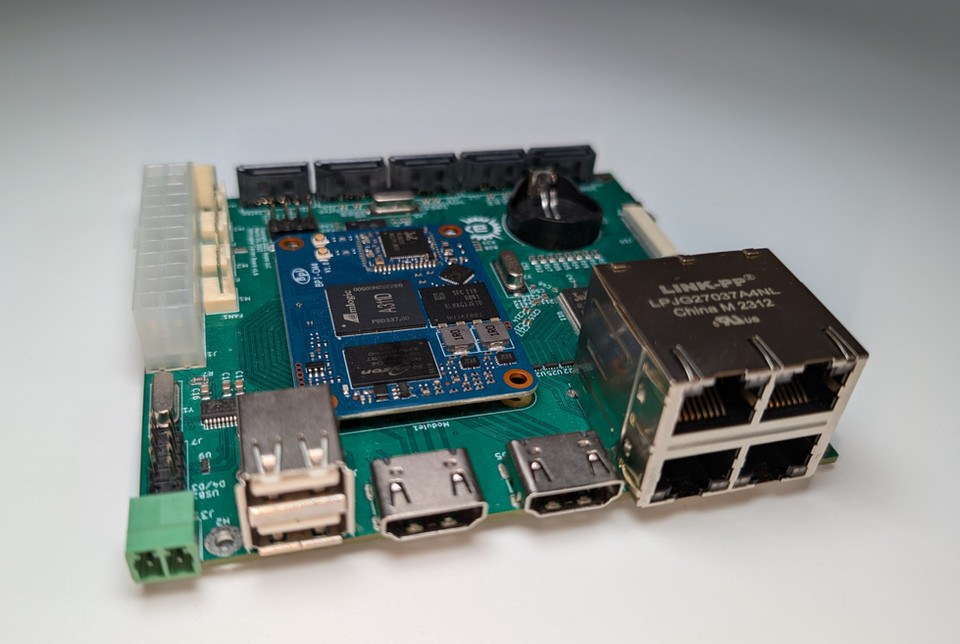

Interceptor carrier board · Download (JPG, 960 x 644, 0.1 MB)

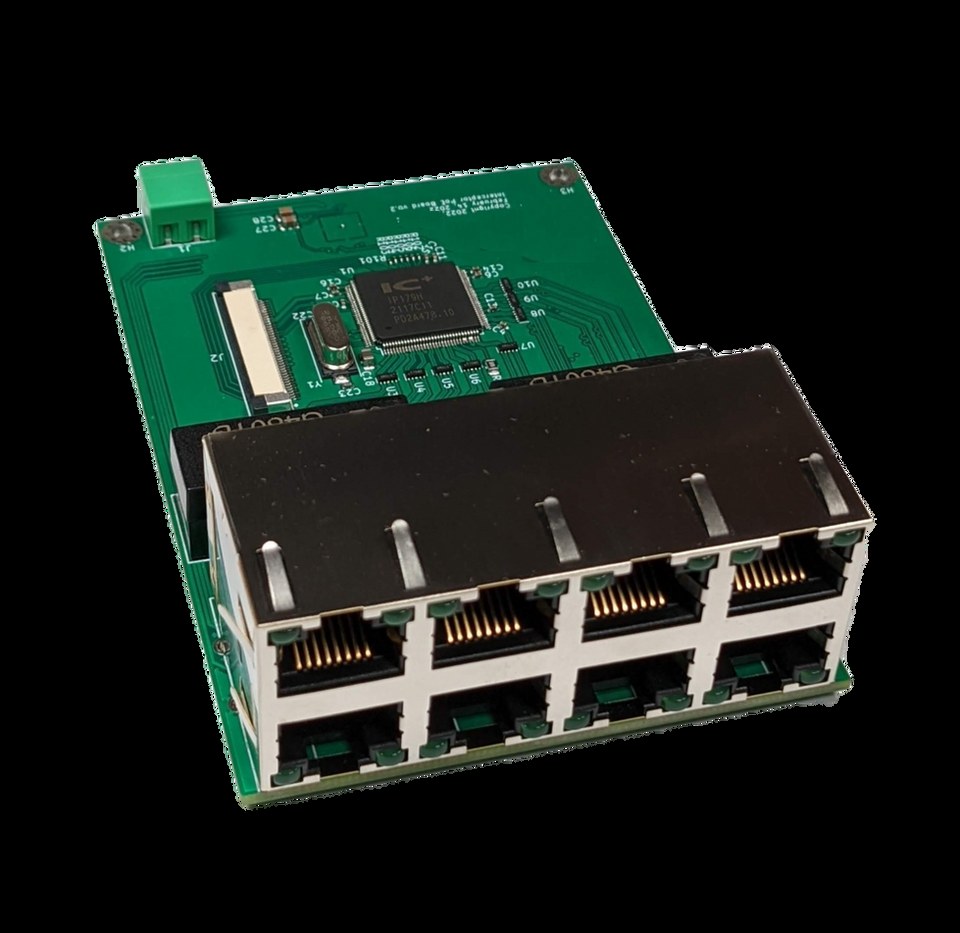

Interceptor PoE Board · Download (JPG, 960 x 933, 0.1 MB)

Fact sheets

Key facts, taken straight from each product page. Prices are US list prices in USD.

Cruiser Carrier Board v1.0

Built for Raspberry Pi CM5: a carrier board with a built-in switch, 2.5GbE uplink, NVMe and 2x SATA. Cruiser has 8 PoE+ ports, Cruiser Lite 4 PoE+ ports, Cruiser Keel 4 ports without PoE.

From $99 · Board only. CM5 sold separately.

Compute moduleRaspberry Pi CM5 or CM5 Lite (sold separately)
SwitchCruiser: 8x Gigabit PoE+. Cruiser Lite: 4x Gigabit PoE+. Cruiser Keel: 4x Gigabit, no PoE
PoEIEEE 802.3at (PoE+), 802.3af compatible. 120W budget: eight ports at 15W or four at 30W (firmware 1.1.2 or later)
Uplink2.5GbE WAN port (Realtek RTL8156BG)
StorageM.2 Key-M (PCIe Gen 2 x1, 2230 to 2280), 2x SATA III, microSD
RAIDHardware RAID 0, 1, Span or JBOD (DIP switch), or Linux software RAID
WirelessESP32-C6: 2.4 GHz Wi-Fi 6 (802.11ax) and Bluetooth LE, Zigbee coming soon. External antenna connector; antenna not included
Video2x HDMI 2.0, up to 4K at 60Hz, independent displays
USB3x USB 3 (5 Gbps), 4x USB 2.0 (2 stacked, 2 via header)
Expansion2x Qwiic/STEMMA QT, FFC connector for an Interceptor PoE Board (+8 ports at 10/100 Mbps)
Power inputDC barrel jack (5.5/2.1 mm). Cruiser and Cruiser Lite: 48 to 57V. Cruiser Keel: 13 to 57V, 24V or higher recommended, 48V when an Interceptor PoE Board is attached
Size170 x 120 mm, Mini-ITX compatible with standoff spacers
Operating temperature0 to 70 °C
SoftwareRaspberry Pi OS, Debian 12 Bookworm or 13 Trixie, Ubuntu 25.10 or 26.04 LTS (arm64) with Exaviz packages from apt.exaviz.com
ComplianceSee our trade compliance statement for the board's HTS code, ECCN and self-attested NDAA statements on its own components

Full specs · Documentation

Interceptor Carrier Board v2.0

Carrier board built for Raspberry Pi CM4, compatible with Raspberry Pi CM5 and Banana Pi CM4. Add up to two PoE Boards for 16 PoE+ ports (10/100).

From $79 · Board only. Compute module sold separately.

Compute moduleRaspberry Pi CM4, Raspberry Pi CM5 or Banana Pi CM4 (sold separately)
Storage5x SATA III (JMicron JMB585), hot-plug, microSD
RAIDSoftware RAID 0, 1, 5, 6 and 10 (mdadm)
Switch4x Gigabit RJ-45, managed (Realtek RTL8367RB)
PoEUp to 16 PoE+ ports (10/100 Mbps) with one or two Interceptor PoE Boards. One 48Vdc Power Converter supplies 240W: 8 ports at 30W or 16 ports at 15W
Video2x HDMI 2.0, up to 4K at 60Hz (one HDMI port with Banana Pi CM4)
USB4x USB 2.0 (2 rear, 2 via header)
SerialRS-485 connector, UART on the front panel header
Power inputStandard 24-pin ATX power supply
Size100 x 110 mm, Mini-ITX compatible with the Interceptor Board Adapter
OtherRTC with CR2032 battery, 4x 12V fan headers (fans run at full speed, no PWM)
Operating temperature0 to 70 °C
SoftwareCM4 and CM5: Raspberry Pi OS, Debian 12 Bookworm or 13 Trixie, or Ubuntu 25.10 or 26.04 LTS with Exaviz packages from apt.exaviz.com. Banana Pi CM4: legacy Exaviz OS image (still available, no longer developed)
ComplianceSee our trade compliance statement for the board's HTS code, ECCN and self-attested NDAA statements on its own components

Full specs · Documentation

Interceptor PoE Board

Adds 8 PoE+ ports (10/100). Up to two on an Interceptor Carrier Board, one on any Cruiser (Cruiser, Cruiser Lite or Cruiser Keel).

From $59

Ports8x RJ-45, 10/100 Mbps
PoEIEEE 802.3at (PoE+), Class 0 to 4, up to 30W per port, Mode B (spare pairs)
Power48V DC. On an Interceptor: 48Vdc Power Converter (sold separately), 240W per converter. On a Cruiser: the Cruiser's own 48V supply, sharing its 120W PoE budget (firmware 1.1.2 or later). Cruiser Keel has no onboard PoE, so it needs a 48V supply to power a PoE Board
StackingUp to 2 PoE Boards per Interceptor Carrier Board, 16 ports total
CablesStandard 8-wire Ethernet (all 4 pairs), Cat5e or Cat6
Size100 x 68 mm
Driverexaviz-pse-dkms from apt.exaviz.com

Full specs · Documentation

Product briefs

Print-ready briefs with highlights, use cases and full specs.
